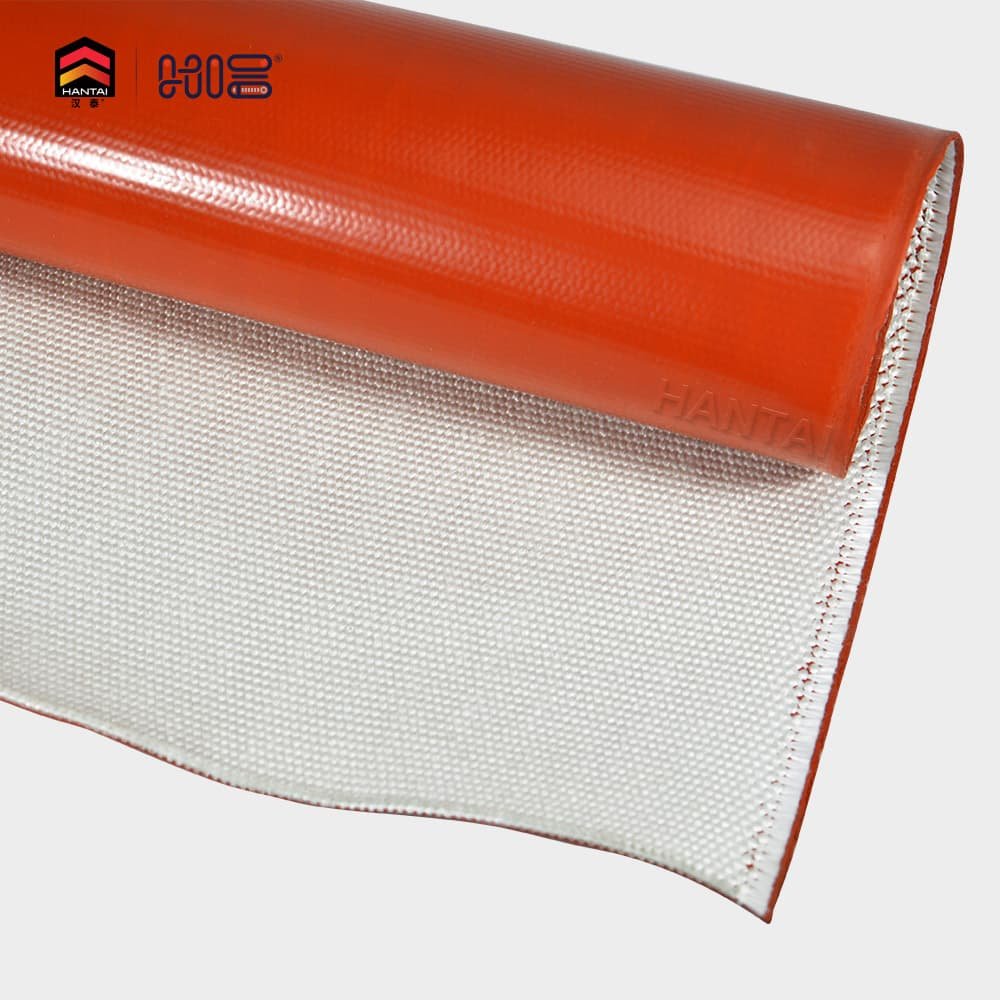

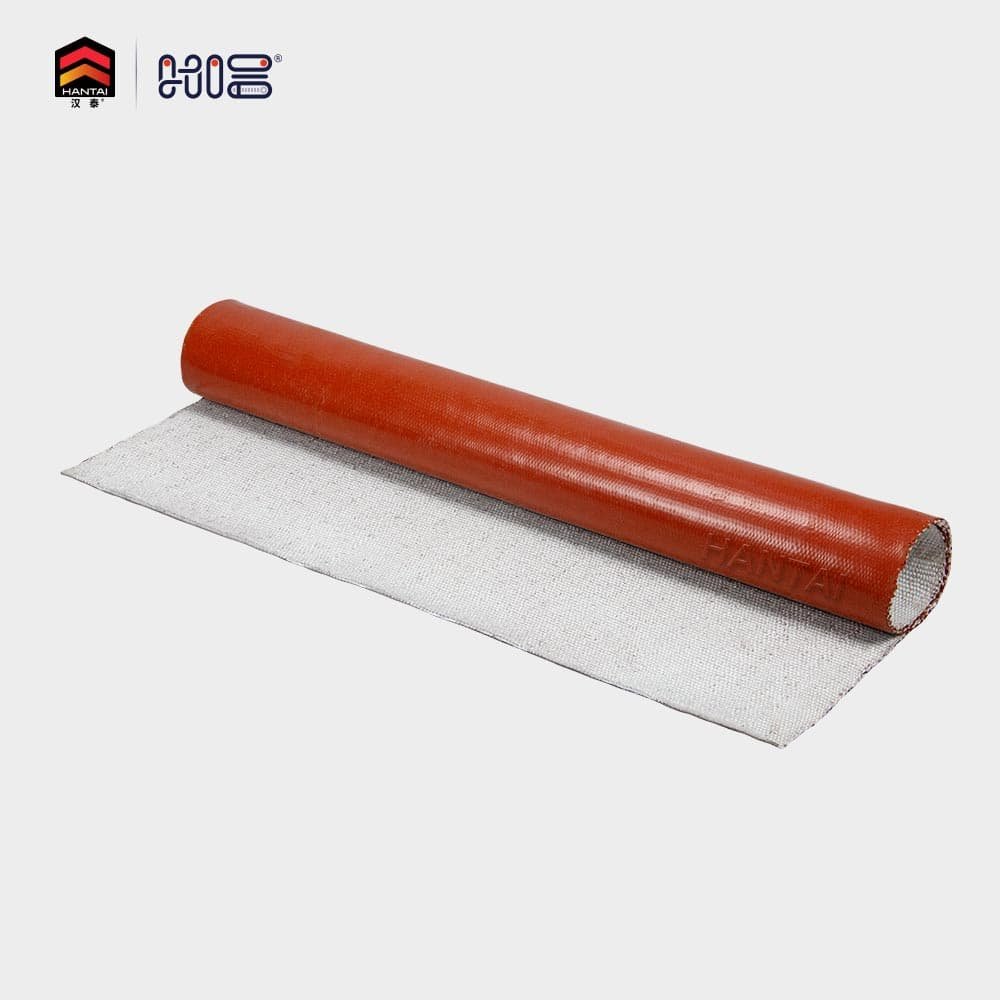

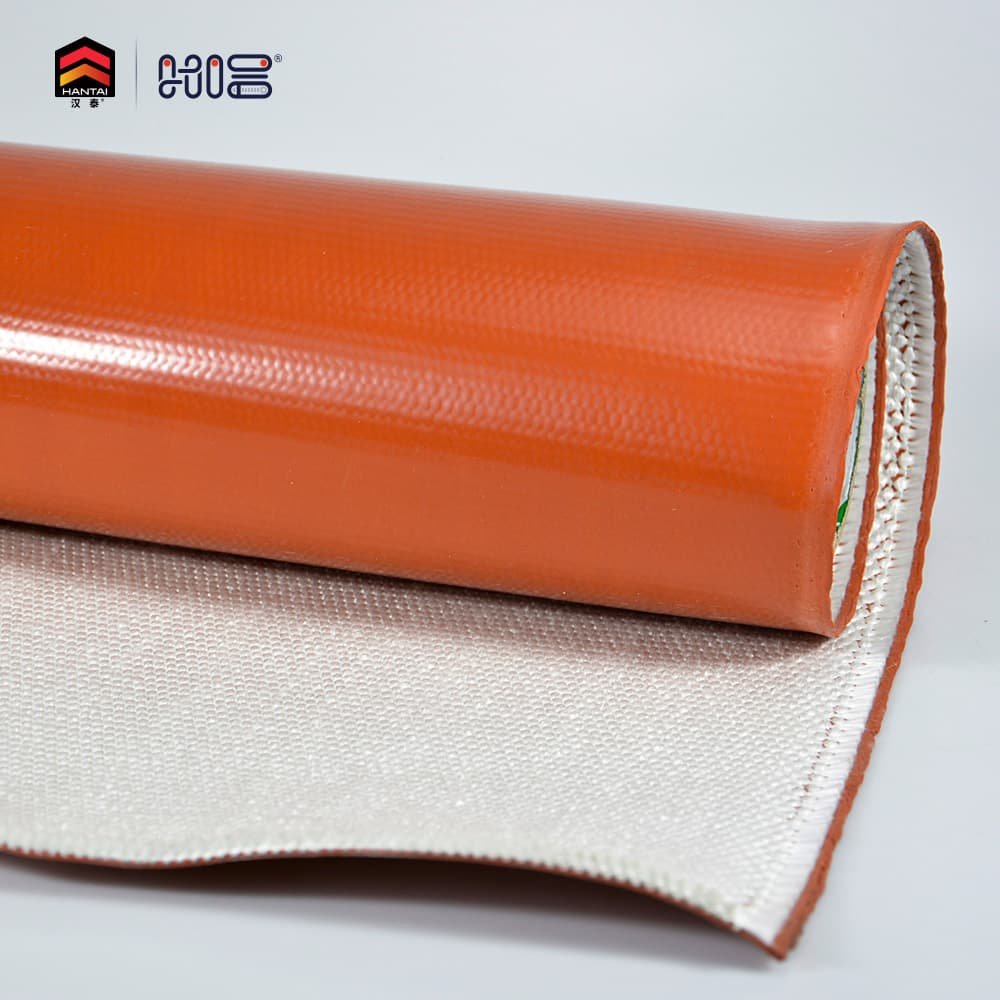

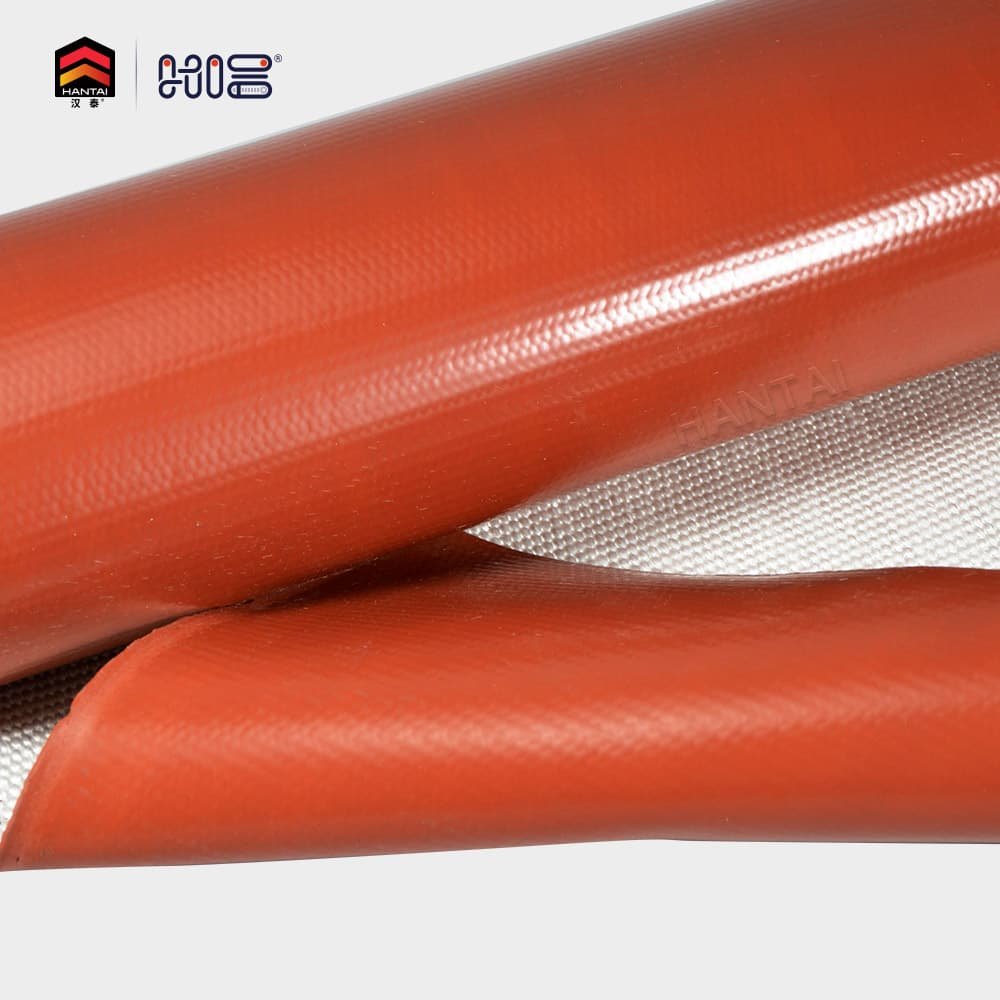

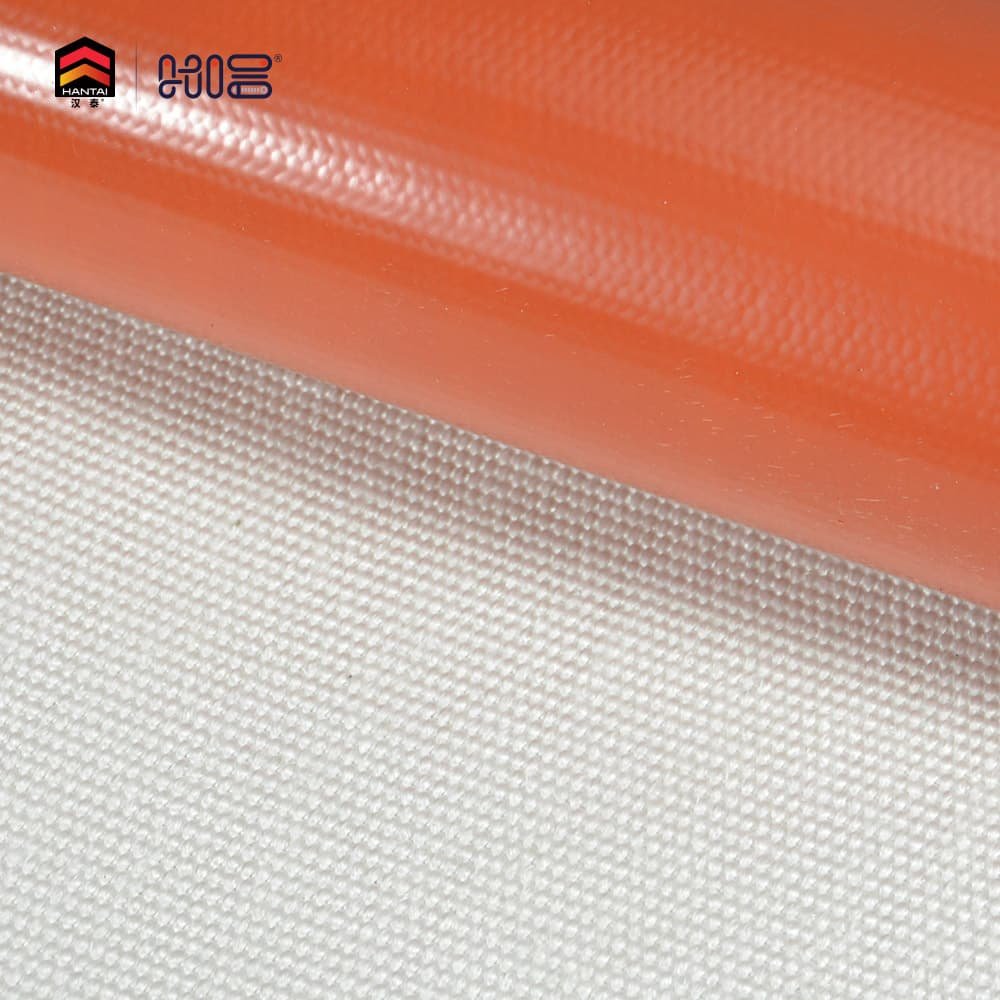

Silicone Coated Fiberglass Fabric(Coating on one side)
• Materials: E-glass fiber, Silicone Rubber Coating
• Working Temperature: Continuous working at 500°F (260°C), peaks at 3000°F (1650°C)
• Thickness: 0.26mm – 3.0mm
• Width: 1000mm – 1500mm
Silicone Rubber Fiberglass Fabric is designed to shed molten splash, heavy weld spatter and occasional flame.
DESCRIPTION
HANTAI® Silicone Coated Fiberglass Fabric is designed to provide shielding for employees, as well as protection for equipment, hoses and other critical components, while reducing heat energy losses. Made of a woven fiberglass substrate with silicone rubber coating on one side, this fire fabric delivers excellent protection against spark, high heat, occasional flame and molten metal splashes. Silicone rubber coated fiberglass fabric is widely used in the fabrication of insulation curtains & jackets. Besides standard roll, it can also be supplied with different lengths, sizes, shapes, upon request from customers.
CHARACTERISTICS
| PRODUCTS | Silicone Coated Fiberglass Fabric (Coating on one side) |
| MATERIALS | E-glass fiber, Silicone Rubber Coating |
| WORKING TEMPERATURE | Continuous working at 500°F (260°C), peaks at 3000°F (1650°C) |
| COLOR OPTIONS | Standard: Iron Oxide Red; Others: Blue, Black, Yellow, Grey, etc. on request |
| TYPICAL INDUSTRIES | Hose Fabrication, Oil & Gas, Iron & Steel, Glass, Vehicles, etc. |
SPECIFICATION
| HANTAI PART NO# | THICKNESS (MM) | WIDTH (MM) | ROLL LENGTH (M) | UNIT WEIGHT (G/M2) |
| HT12S-050 | 0.5 | 1000 | 50 | 520 |
| HT12S-100 | 1 | 1000 | 50 | 1650 |
| HT12S-200 | 2 | 1000 | 50 | 3000 |
| HT12S-300 | 3 | 1000 | 30 | 3800 |
* Other thickness is available upon request.
