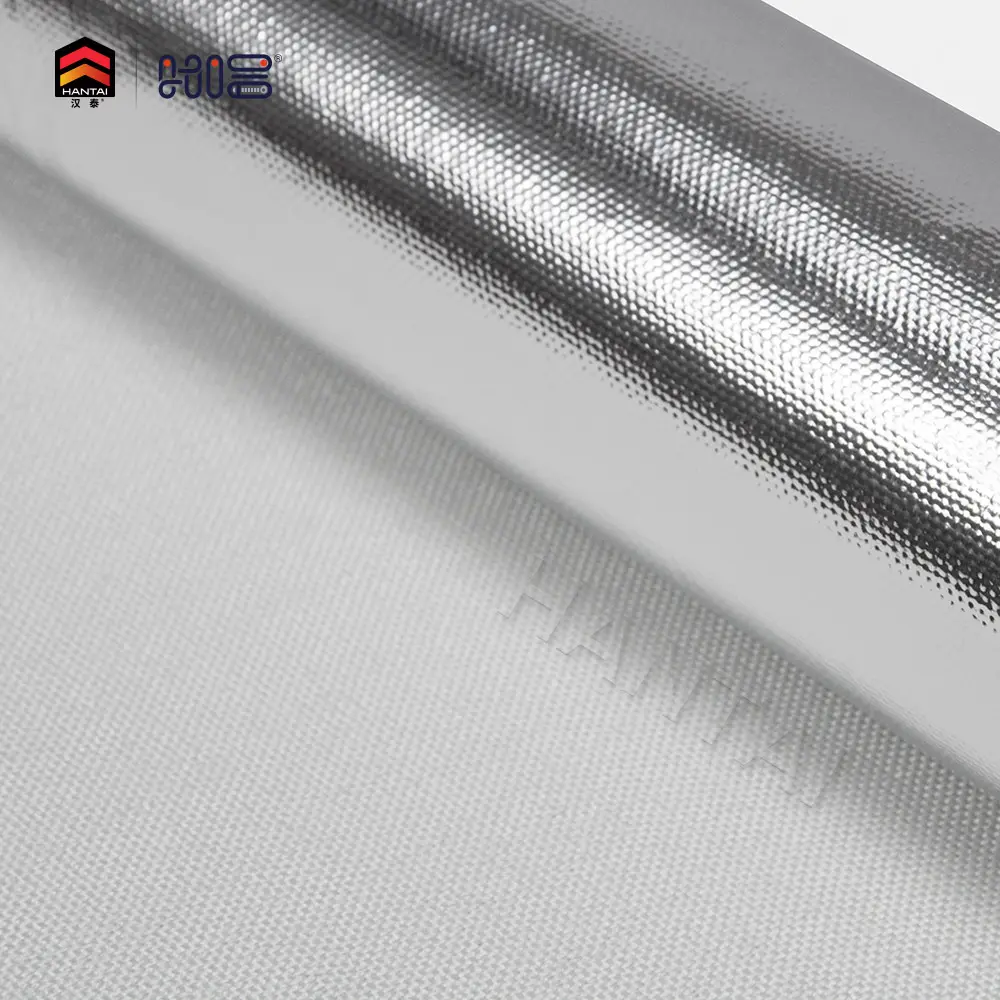

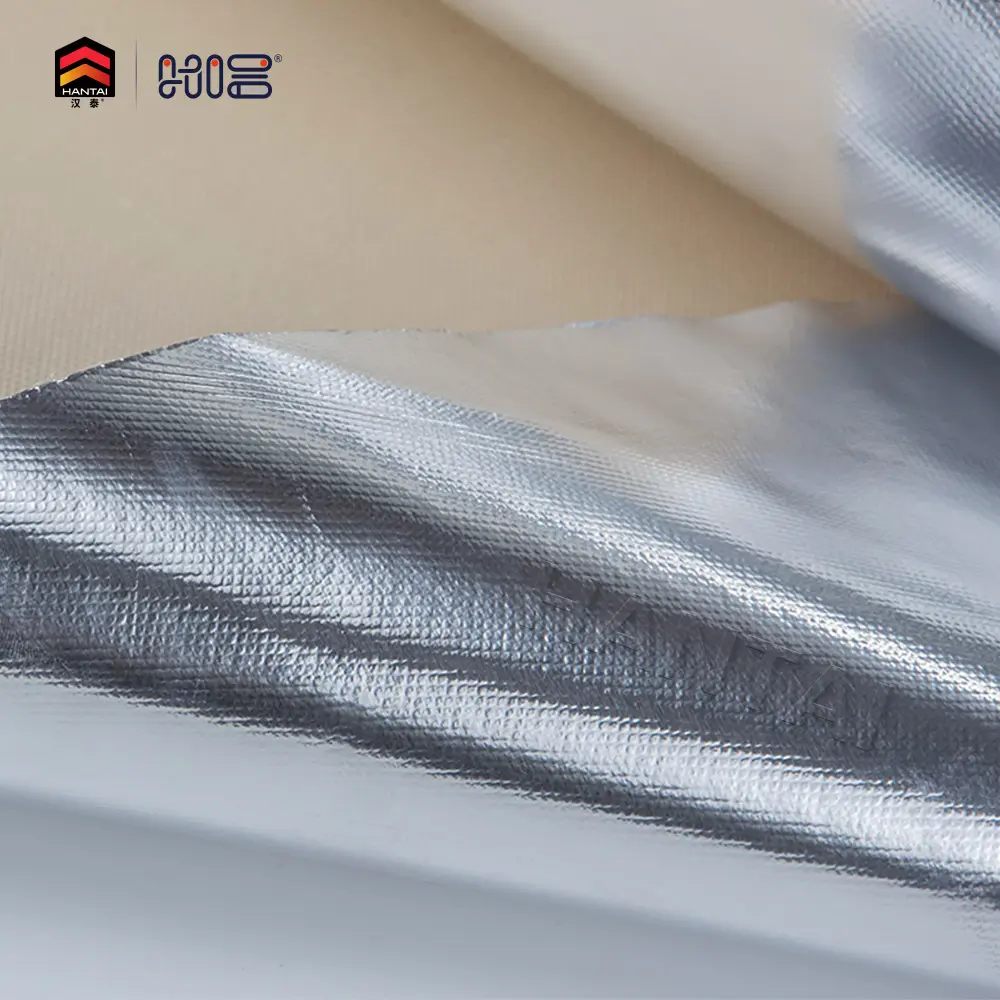

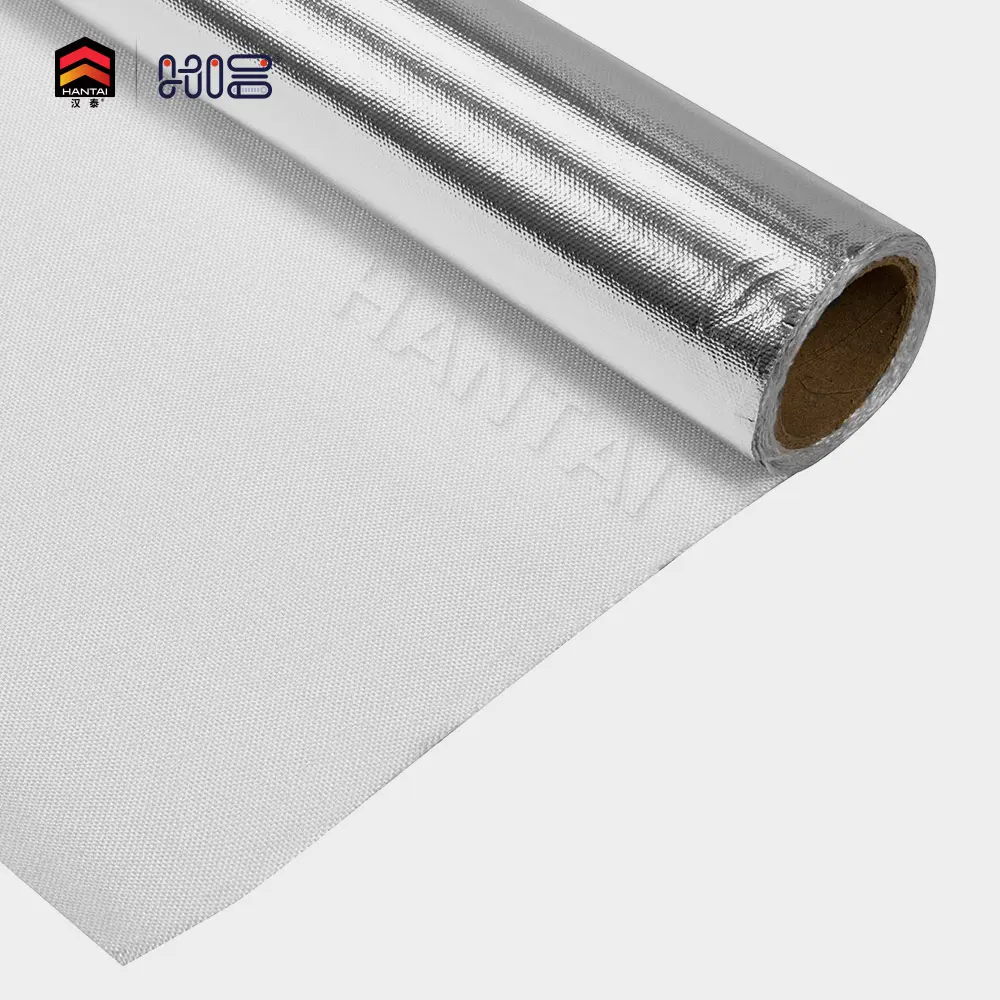

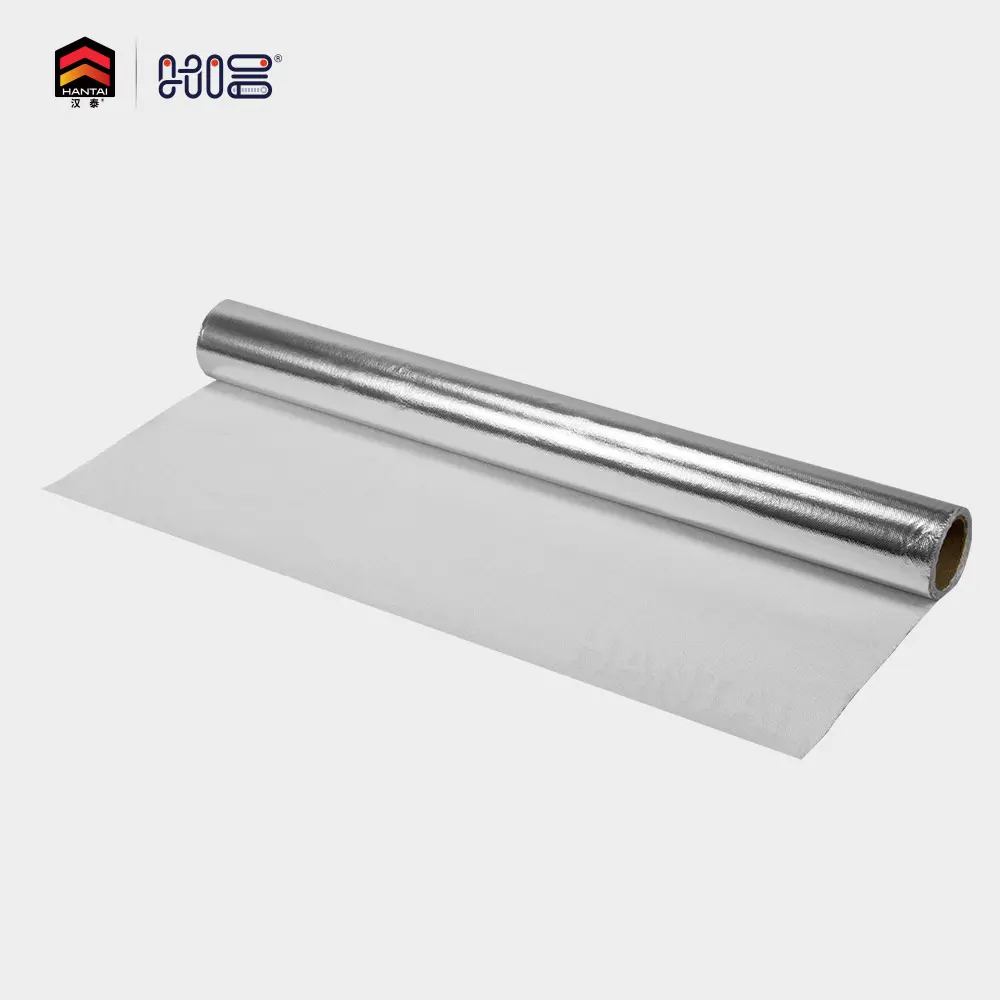

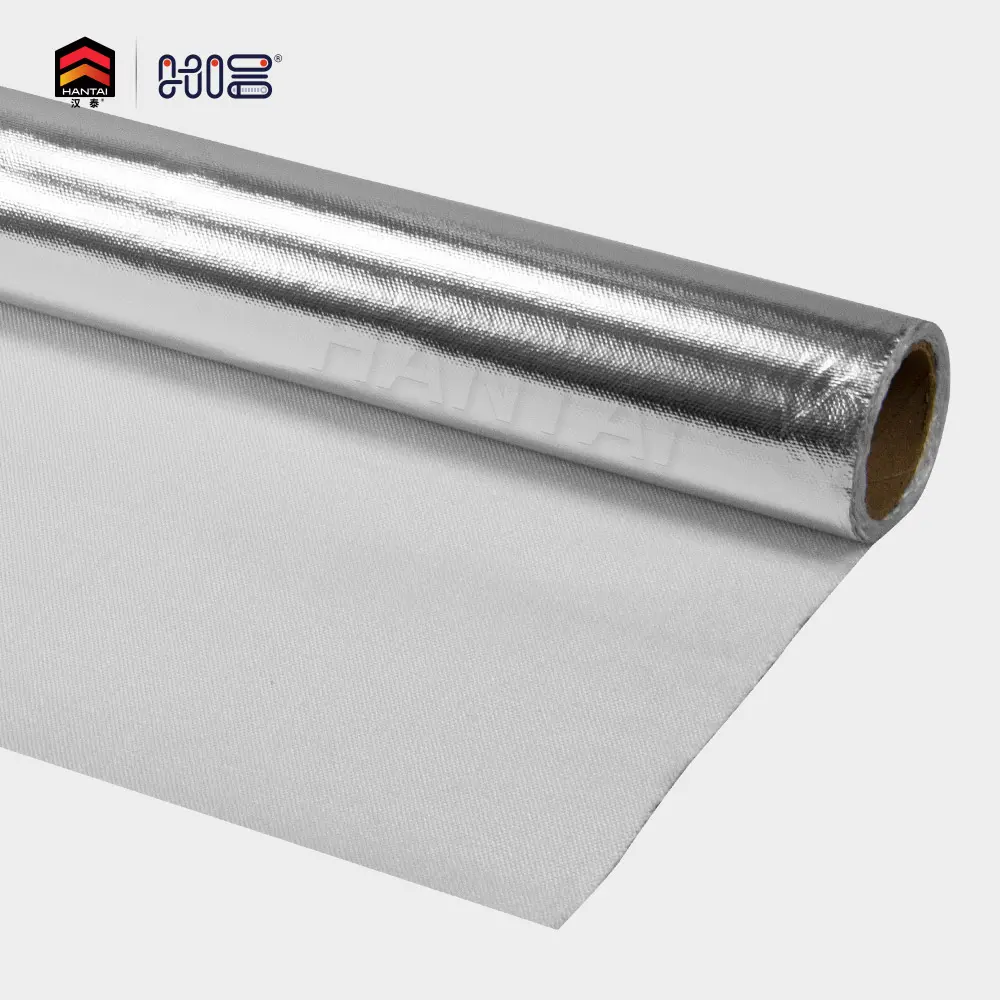

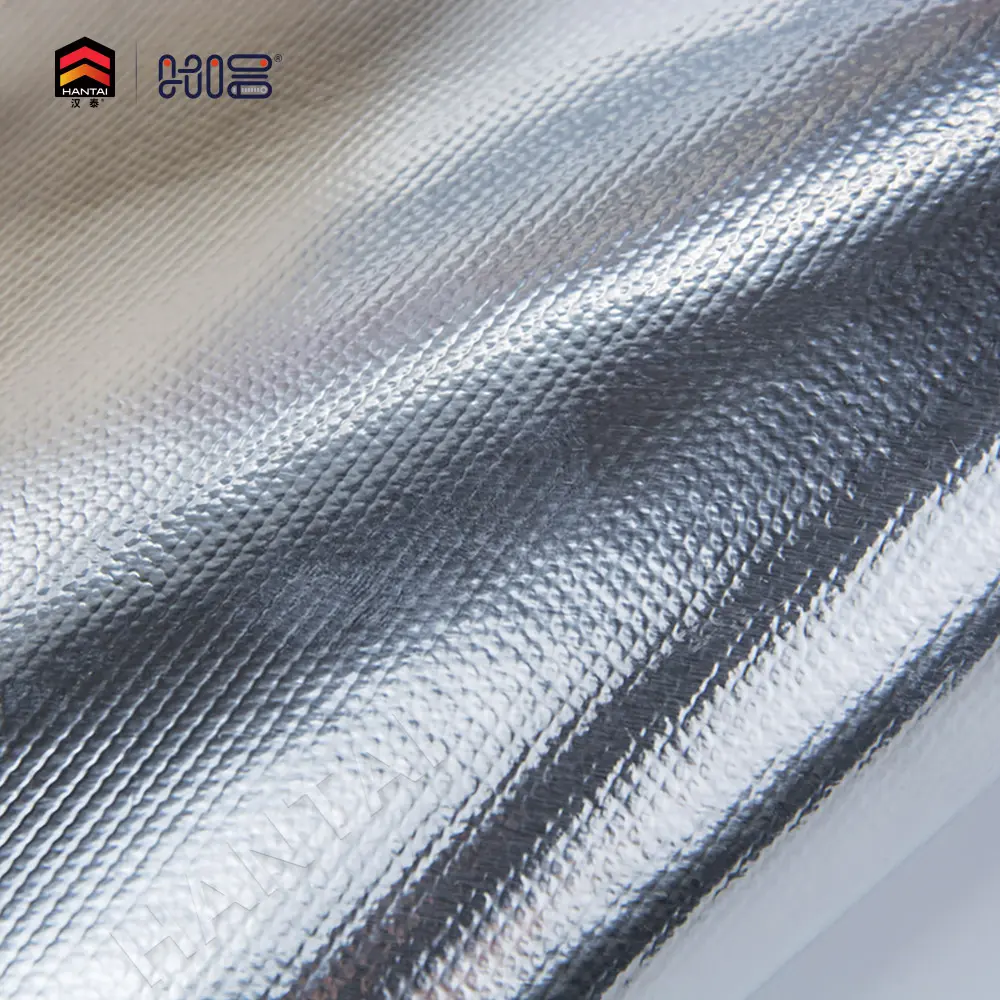

Aluminium Coated Fiberglass Fabric
• Materials: E-glass fiber, Aluminium Foil
• Working Temperature: 500°F~1020°F (260°C~550°C)
• Thickness: 0.2mm – 2.0mm
Aluminum Fiberglass Fabric offering an excellent way to reflect radiant heat away from a vehicles interior and because of its flexibility.
DESCRIPTION
Aluminium coated fiberglass fabric is made of a fiberglass fabric substrate then bonded with high heat reflective aluminium foil. It reflects at least 90% of radiant heat energy, and is an excellent choice for the protection of industrial wires, cables, hoses, pipes, tubes and equipment which are in close proximity to intense radiant heat sources, such as super-hot metal slabs, liquid and molten metal or glass, open flame, engine exhaust manifolds, etc. The aluminium layer will not delaminate from the base fiberglass fabric, even under the most extreme heat conditions. With extremely durable construction, Aluminium Coated Fiberglass Fabric can meet the most demanding requirements for water and oil resistance, abrasion resistance and tensile strength.
CHARACTERISTICS
| MATERIALS | E-glass fiber, Aluminium Foil |
| WORKING TEMPERATURE | 500°F~1020°F (260°C~550°C) |
| COLOR OPTIONS | Silvery |
| TYPICAL INDUSTRIES | Hose Fabrication, OEM, Vehicle, Metals, Glass, etc. |
SPECIFICATION
| HANTAI PART NO# | THICKNESS (MM) | WIDTH (MM) | ROLL LENGTH (M) | UNIT WEIGHT (G/M2) |
| HT12L-020 | 0.2 | 1000 | 50 | 260 |
| HT12L-050 | 0.5 | 1000 | 50 | 420 |
| HT12L-076 | 0.76 | 1000 | 50 | 600 |
| HT12L-100 | 1 | 1000 | 50 | 860 |
| HT12L-150 | 1.5 | 1000 | 50 | 1050 |
| HT12L-200 | 2 | 1000 | 50 | 1330 |
*Other thickness and width are available upon request.
